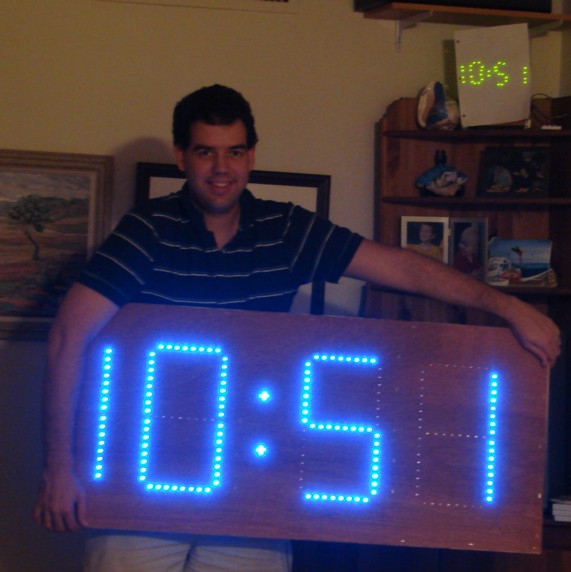

World's Largest Solderless Clock

This 4-foot wide clock is based on the LEDkit.biz "B" clock. However, there are 4X as many LEDs. All 192 LEDs are powered by a single LEDkit.biz driver. Not one LED or wire was soldered; everything was twisted with a pair of pliers. The electronics costs less than the lumber!

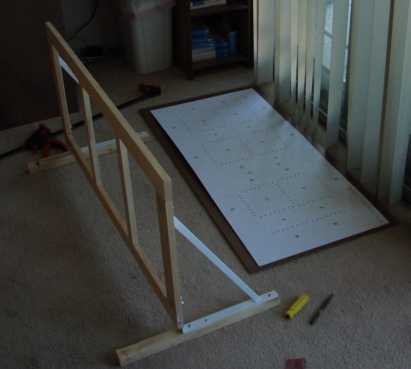

Step 1: Making the frame

Step 2: Attach a drilled-up panel

Download drill pattern PDF

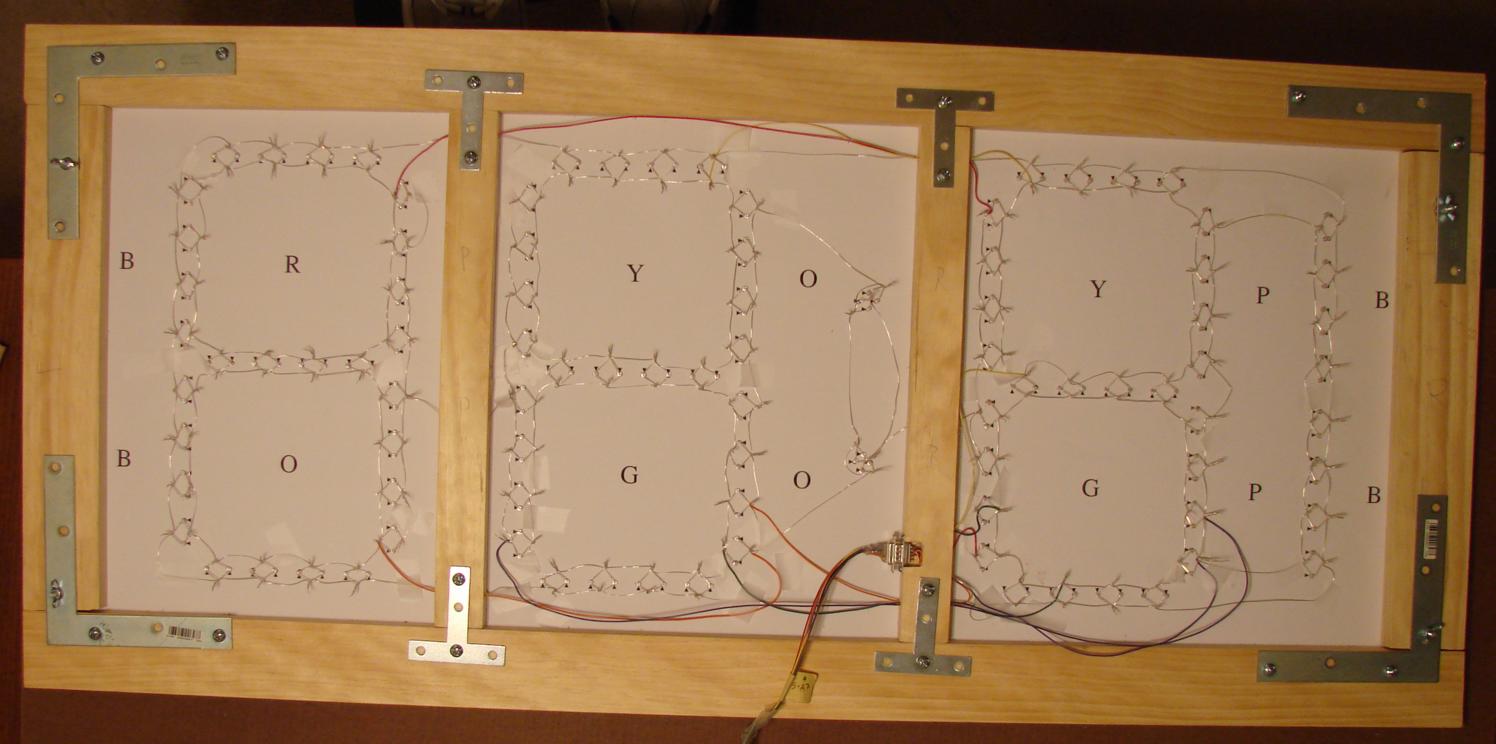

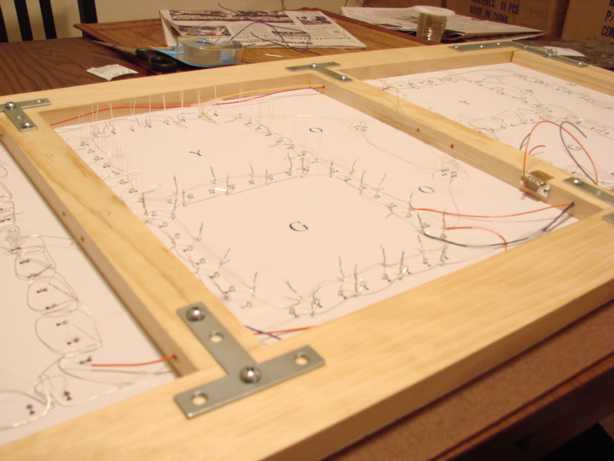

Step 3: Push LEDs into the back of the panel

World's Largest Solderless Clock

Step 1: Making the frame

Step 2: Attach a drilled-up panel

Step 3: Push LEDs into the back of the panel

Step 4: test

Other variations

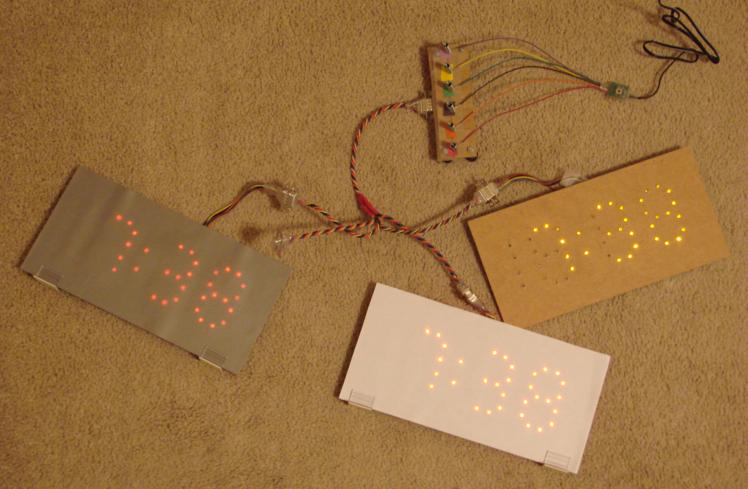

power 3 clocks off one driver

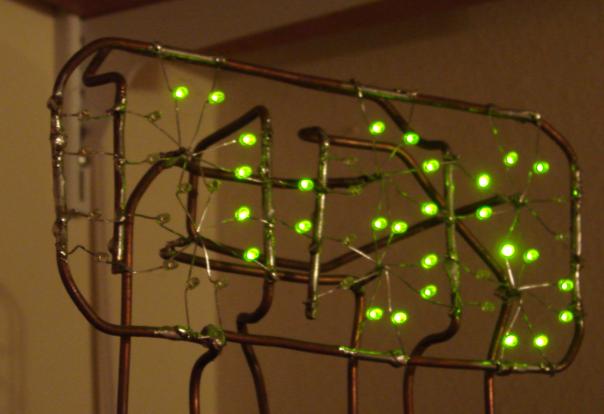

Make a clock with no panel at all!

(note: the one shown above has been soldered)
