LEDkit™ Clock Features

Clock Technical Specifications

timekeeping method line-synchronous with advanced PLL
backup power large capacitor, lasts for 1 minute
multi-display synchronization Supports Linking!
display format 12-hour (3.5 digits)
panel dimensions 9"W x 5"H x 1/8" thick
display elements 48 super-bright blue LEDs
time and brightness setting simple pushbutton interface
panel wiring diagnostics test sequence via pushbutton
mounting sticks to flat surface, standing upright
power supply 3W UL-listed wall transformer
input voltage 110-130V 60Hz


LEDkit™ Clock Driver

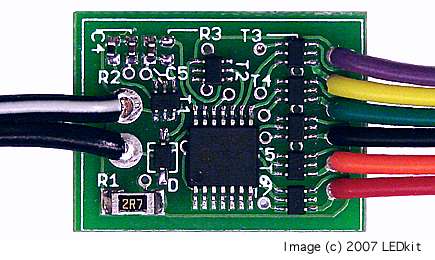

LEDkit™ clocks derive their features from the advanced driver included in the kit. This driver is fully preassembled when you get it. The driver is attached to a UL-listed USA/Canada wall transformer and has a formed, transparent protective plastic cover for safety. In the following picture the cover has been removed to showcase the fine-pitch technology:

Our patent-pending driver provides the following features:

The driver is included in the basic kit. After building your first clock, build more clocks by purchasing additional drivers here:

Price: $ 12.95 Quantity:

Note: there is a $6 handling charge if your order is under $25.
